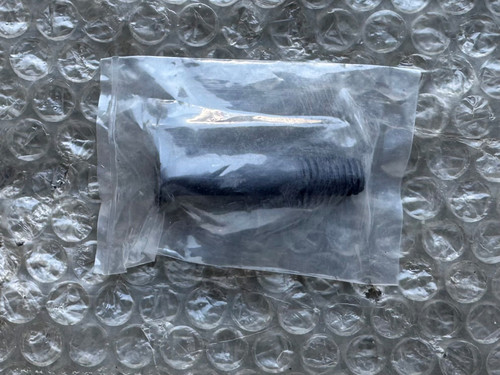

NORTHROP GRUMMAN SCREW CAP SOCKET HEAD P/N 6390825-2
NSN 5305015060321
| Name | Value |
| FASTENER LENGTH | 0.984 INCHES MINIMUM AND 1.031 INCHES MAXIMUM |
| HEAD STYLE | FLAT CHAMFER |
| HEAD DIAMETER | 0.750 INCHES NOMINAL |
| HEAD HEIGHT | 0.500 INCHES NOMINAL |
| LOCKING FEATURE | STRIP THREADS |
| INTERNAL DRIVE STYLE | HEXAGON |
| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| WIDTH ACROSS FLATS | 0.375 INCHES NOMINAL |
| MATERIAL | TITANIUM ALLOY UNS R56400 OVERALL |
| PROPRIETARY CHARACTERISTICS | PACS |
Call or email for a price
S9 Box 1
Page 35
